TDH120: 12 TONNE PAYLOAD
Full specifications |
  |
||

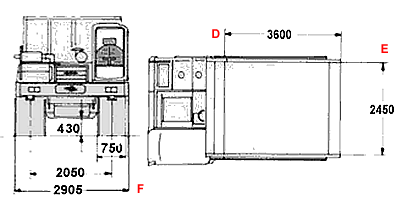

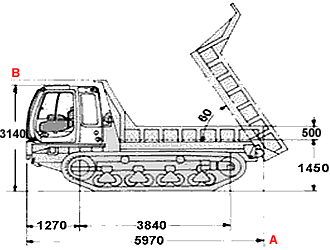

Full Length (A) mm |
5970 | ||
Full Width (F) mm |
2905 | ||
Full Height (B) mm |
3140 | ||
Machine weight (kg) |
13500 | ||
Dump Body L (D) mm |
3600 | ||
Dump Body W (E) mm |
2450 | ||
Dump Body H mm |
500 | ||
Ground Clearance (mm) |
430 | ||
Track Width (mm) |
750 | ||
Max. Payload (kg) |
12000 | ||
Cabin |
Yes | ||
Engine Make |
Hino | ||
Engine Model |
K13D-F | ||
Fuel Type |
Diesel | ||
Fuel Tank cap (litres) |
240 | ||
Braking |
Service | ||
Drive System |
HST | ||
Transmission |
2 Speed | ||
Performance |
|||
Ground Pressure kg/cm2 |
0.22 | ||
Ground Pressure psi |
3.27 | ||
Speed 1st Gear km/h |
0 -8 | ||
Speed 2nd Gear km/h |
0-12 | ||
Gradient Ability (deg) |
57 | ||
Turning radius (m) |
3.5 | ||
