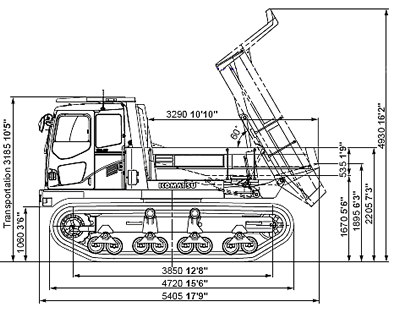

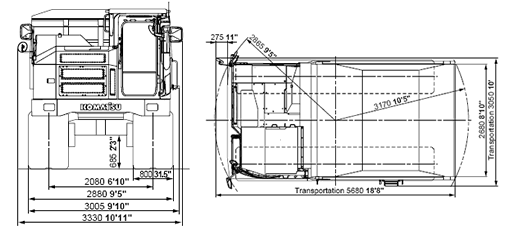

TDH120S: 12 TONNE PAYLOAD
Full specifications |
|
Full Length (a) mm |
5405 |
Full Width (f) mm |
3300 |
Full Height (b) mm |
3185 |
Machine weight (kg) |
15600 |
Dump Body L (d) mm |
3290 |
Dump Body W (e) mm |
2680 |
Dump Body H mm |
535 |
Ground Clearance (mm) |
685 |
Track Width (mm) |
800 |
Max. Payload (kg) |
120000 |
Cabin |
Yes |
Engine Make |
Komatasu |
Engine Model |
SAA6D114E |
Fuel Type |
Diesel |
Fuel Tank cap (litres) |
300 |
Braking |
Service |
Drive System |
HST |
Transmission |
2 Speed |
Performance |
|
Ground Pressure kg/cm2 |
0.25 |
Ground Pressure psi |
3.6 |
Speed 1st Gear km/h |
0-4.5 |
Speed 2nd Gear km/h |
0-10.0 |
Gradient Ability (deg) |
58 |
Turning radius (m) |
2.8 |
