TDH140S: 14 TONNE PAYLOAD

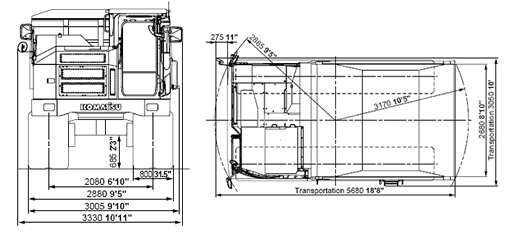

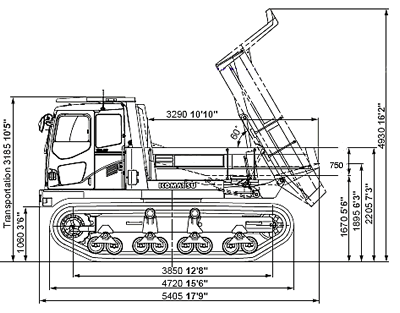

Full specifications |
|
Full Length (a) mm |
6000 |
Full Width (f) mm |
3490 |
Full Height (b) mm |
3000 |
Machine weight (kg) |
16100 |
Dump Body L (d) mm |
3400 |
Dump Body W (e) mm |
2930 |
Dump Body H mm |
750 |
Ground Clearance (mm) |
560 |
Track Width (mm) |
800 |
Max. Payload (kg) |
14000 |
Cabin |
Yes |
Engine Make |
Isuzu |
Engine Model |
AA-6HK1TC |
Fuel Type |
Diesel |
Fuel Tank cap (litres) |
300 |
Braking |
Service |
Drive System |
HST |
Transmission |
2 Speed |
Performance |
|
Ground Pressure kg/cm2 |
0.26 |
Ground Pressure psi |
3.6 |
Speed 1st Gear km/h |
0-7.0 |
Speed 2nd Gear km/h |
0-10.0 |
Gradient Ability (deg) |
58 |
Turning radius (m) |
2.8 |
