TDH50: 5 TONNE PAYLOAD
Full specifications |
||

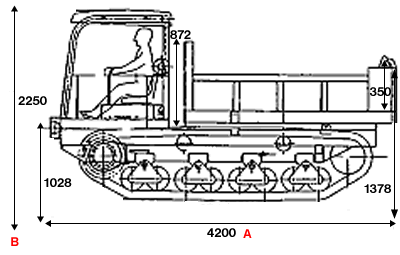

Full Width (F) mm |
2150 | |
Full Height (B) mm |
2250 | |
Machine weight (kg) |
5210 | |
Dump Body L (D) mm |
2550 | |
Dump Body W (E) mm |
1850 | |
Dump Body H mm |
350 | |
Ground Clearance (mm) |
355 | |
Track Width (mm) |
550 | |
Max. Payload (kg) |
5000 | |
Cabin |
Yes | |
Engine Make |
Mitsubishi | |
Engine Model |
S4D95L-1 | |
Fuel Type |
Diesel | |
Fuel Tank cap (litres) |
60 | |
Braking |
Service | |
Drive System |
HST | |
Transmission |
1 Speed | |
Performance |
||
Ground Pressure kg/cm2 |
0.13 | |
Ground Pressure psi |
1.8 | |
Speed 1st Gear km/h |
0-10 | |
Speed 2nd Gear km/h |
||
Gradient Ability (deg) |
57 | |
Turning radius (m) |
2.2 | |
