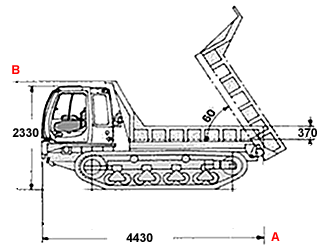

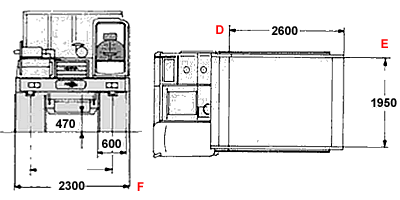

TDH70: 7 TONNE PAYLOAD
Full specifications |
||
Full Length (A) mm |
4500 | |
Full Width (F) mm |
2300 | |
Full Height (F) mm |
2380 | |
Machine weight (kg) |
6500 | |
Dump Body L (D) mm |
2600 | |
Dump Body W (E) mm |
1950 | |
Dump Body H mm |
370 | |
Ground Clearance (mm) |
470 | |
Track Width (mm) |
600 | |
Max. Payload (kg) |
7000 | |
Cabin |
Yes | |
Engine Make |
Mitsubishi | |
Engine Model |
6D16-TE1 | |
Fuel Type |
Diesel | |
Fuel Tank cap (litres) |
150 | |
Braking |
Service | |
Drive System |
HST | |
Transmission |
2 Speed | |
Performance |
||
Ground Pressure kg/cm2 |
0.17 | |
Ground Pressure psi |
||
Speed 1st Gear km/h |
0-8 | |
Speed 2nd Gear km/h |
0-11 | |
Gradient Ability (deg) |
57 | |
Turning radius (m) |
2.7 | |
