TDH70S: 7 TONNE PAYLOAD

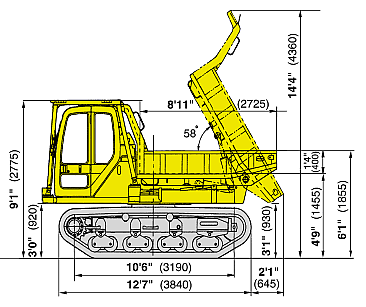

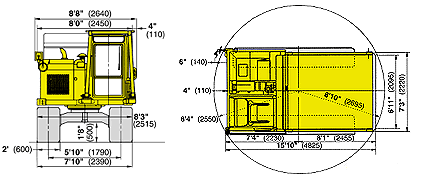

Full specifications |
|
Full Length (a) mm |
4825 |
Full Width (f) mm |
2640 |
Full Height (b) mm |
2775 |
Machine weight (kg) |
8500 |
Dump Body L (d) mm |
2725 |
Dump Body W (e) mm |
2095 |
Dump Body H mm |
400 |
Ground Clearance (mm) |
500 |
Track Width (mm) |
600 |
Max. Payload (kg) |
7000 |
Cabin |
Yes |
Engine Make |
Komatasu |
Engine Model |
S6D102E1A |
Fuel Type |
Diesel |
Fuel Tank cap (litres) |
130 |
Braking |
Service |
Drive System |
HST |
Transmission |
2 Speed |
Performance |
|
Ground Pressure kg/cm2 |
0.17 |
Ground Pressure psi |
2.4 |
Speed 1st Gear km/h |
0-6.0 |
Speed 2nd Gear km/h |
0-8.5 |
Gradient Ability (deg) |
57 |
Turning radius (m) |
3.05 |
