TDH80S: 8 TONNE PAYLOAD
Full specifications |
|

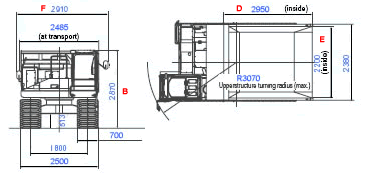

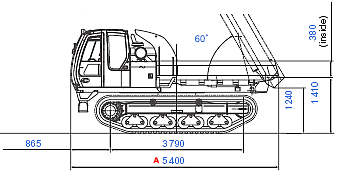

Full Length (a) mm |
5400 |
Full Width (f) mm |
2910 |
Full Height (b) mm |
2870 |
Machine weight (kg) |
10800 |
Dump Body L (d) mm |
2950 |
Dump Body W (e) mm |
2200 |
Dump Body H mm |
380 |
Ground Clearance (mm) |
513 |
Track Width (mm) |
700 |
Max. Payload (kg) |
80000 |
Cabin |
Yes |
Engine Make |
Isuzu |
Engine Model |
CC-6BG1T |
Fuel Type |
Diesel |
Fuel Tank cap (litres) |
165 |
Braking |
Service |
Drive System |
HST |
Transmission |
2 Speed |
Performance |
|
Ground Pressure kg/cm2 |
0.20 |
Ground Pressure psi |
|
Speed 1st Gear km/h |
0-7.0 |
Speed 2nd Gear km/h |
0-10.0 |
Gradient Ability (deg) |
58 |
Turning radius (m) |
2.95 |
